UL Style 1571-28AWG
UL Style 1571, 28 AWG
PVC Insulated Wire (Poly Vinyl Chloride)
0.004” nominal wall thickness
Max.Temperature 80oC Max. Voltage 30 Volts
Very Thin Wall, Small Diameter Wire, for use as internal wiring of Class 2 circuits in electronic equipment.
. Download our data sheet
|
RDS Item Number |
Gauge |
Stranding (Tinned Copper) |
Insulation O.D. |
Nominal Wall |
DC Resistance @ 20oC |
|
UL 1571 |
(AWG) |
|
(Nominal) |
|
Ohms/1000ft |
|
1571-28-07 -* |
28 |
7/36 |
.023” |
.004” |
63.8 |
|
|
|
|
|
|
|
|
1571-28-07 -0 |
Black |
|
|
|
|
|
1571-28-07 -1 |
Brown |
|
|
|
|
|
1571-28-07 -2 |
Red |
|
|
|
|
|
1571-28-07 -3 |
Orange |
|
|
|
|
|
1571-28-07 -4 |
Yellow |
|
|
|
|
|
1571-28-07 -5 |
Green |
|
|
|
|
|
1571-28-07 -6 |
Blue |
|
|
|
|
|
1571-28-07 -7 |
Violet |
|
|
|
|
|
1571-28-07 -8 |
Grey |
|
|
|
|
|
1571-28-07 -9 |
White |
|
|
|
|

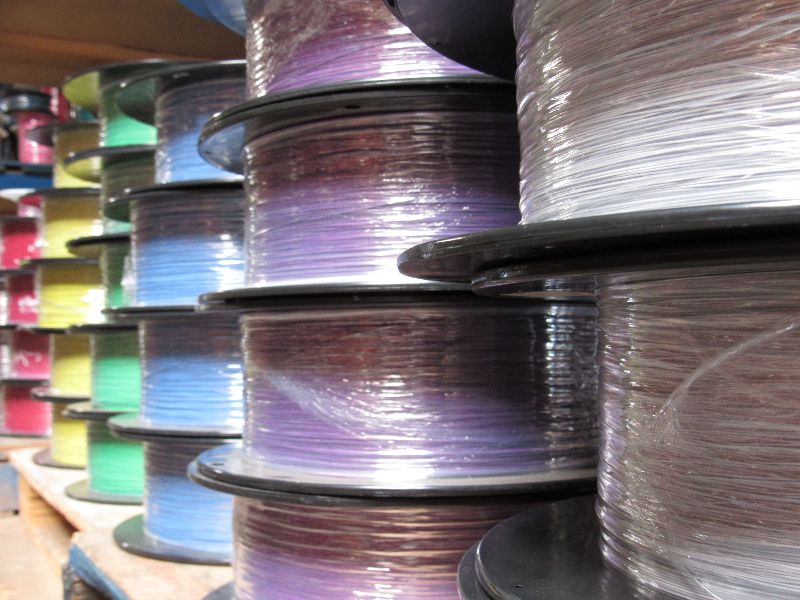

All ten colors are standard stocking items.
Also available with heavier insulation wall thickness on special order
